Fun with fractals using HTML5

Fun with fractals using HTML5

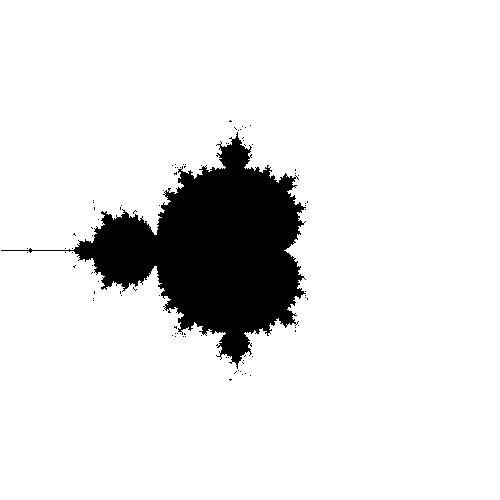

I was writing some fractal code and thought that it would be interesting to see if it could be done in Javascript with graphical output provided by the HTML5 element.  As you can see, it worked just fine, albeit a little bit slow.


<html>
<head>
<script src="fractal.js" type="text/javascript" language="javascript"></script>
</head>
<body onload="drawFractal();">
<canvas style="border: 1px solid black" id="canvas" width="500" height="500"></canvas>
</body>
</html>


// file: fractal.js

// draw a point on our canvas element using the rect function
// set to draw a 1x1 square
function drawPoint( in_x, in_y ) {
 var canvas = document.getElementById( "canvas" );
 var ctx = canvas.getContext( "2d" );
 ctx.fillStyle = "rgb(0,0,0)";
 ctx.fillRect( in_x, in_y, 1, 1 );
}

// data structure that represents a complex number ( re + im )
function Complex( in_re, in_im ) {
 this.re = in_re;
 this.im = in_im;
}

// multiplication function for 2 complex numbers.. Performs FOIL
function ComplexMult( in_c1, in_c2 ) {
 var real = ( in_c1.re * in_c2.re ) - ( in_c1.im * in_c2.im );
 var imag = ( in_c1.re * in_c2.im ) + ( in_c1.im * in_c2.re );

 return new Complex( real, imag );
}

// addition of two complex numbers
function ComplexAdd( in_c1, in_c2 ) {
 return new Complex( in_c1.re + in_c2.re, in_c1.im + in_c2.im );
}

// absolute value of a complex number using sqrt( a^2 + b^2 ) form
function ComplexAbs( in_c ) {
 return Math.sqrt( in_c.re*in_c.re + in_c.im*in_c.im );
}

function drawFractal() {

 // resolution of our pixel image
 var x = 500;
 var y = 500;

 // real axis max/min
 var remin = -2;
 var remax = 2;

 // imaginary axis max/min
 var immin = -2;
 var immax = 2;

 // calculate the ranges from the bounds
 var rerange = remax - remin;
 var imrange = immax - immin;

 // number of iterations that we peform on each pixel
 var depth = 25;

 // iterate over each pixel in our output image
 for( var i=0; i < x; i++ ) {
 for( var j=0; j < y; j++ ) {

 var zn = new Complex( 0, 0 );

 // we need a mapping from pixels to complex plane
 var re = ( rerange/x ) * i - rerange/2;
 var im = ( imrange/y ) * j - imrange/2;
 var c = new Complex( re, im );

 // solve the iterative function for n = depth
 for( var n=1; n <= depth; n++ ) {
 // equation is zn = zn*zn + c
 zn = ComplexAdd( ComplexMult( zn, zn ), c );
 }

 // test to see if the point is in the set using 2 as the
 // boundary
 if( ComplexAbs( zn ) < 2 ) {
 drawPoint( i, j );
 }
 }
 }
}
